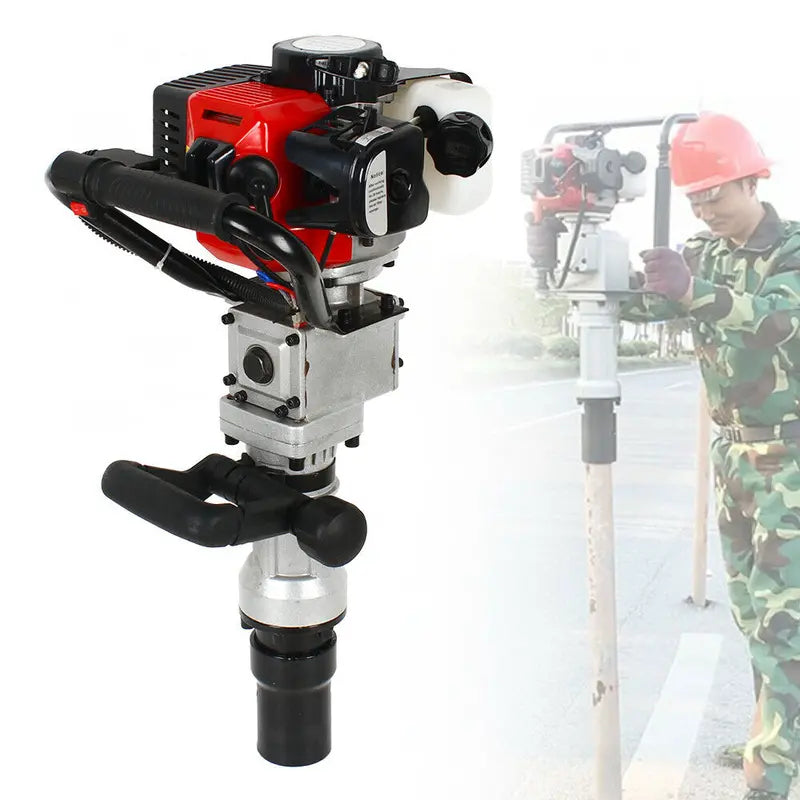

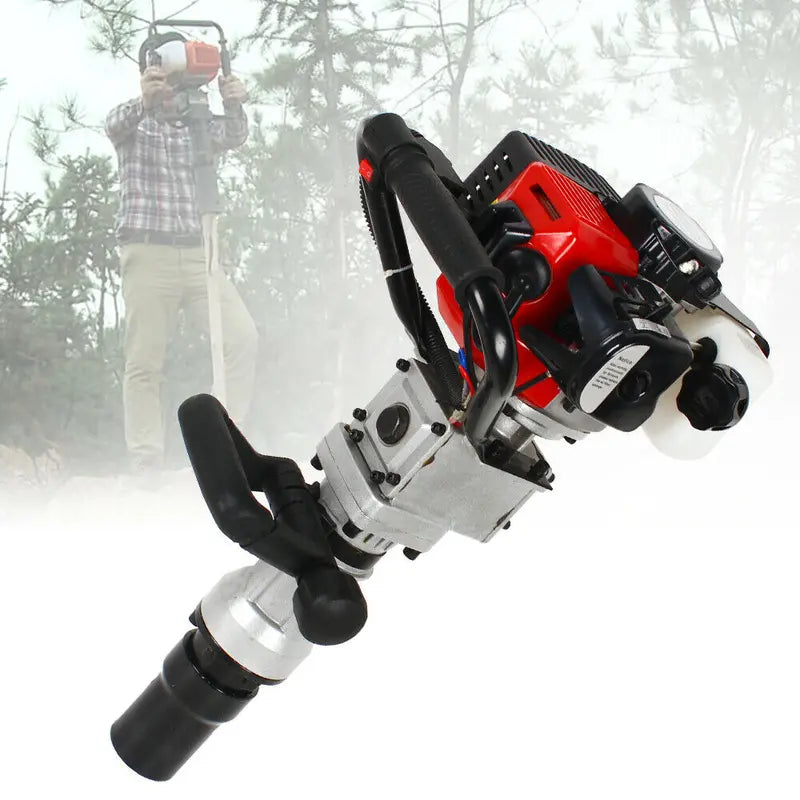

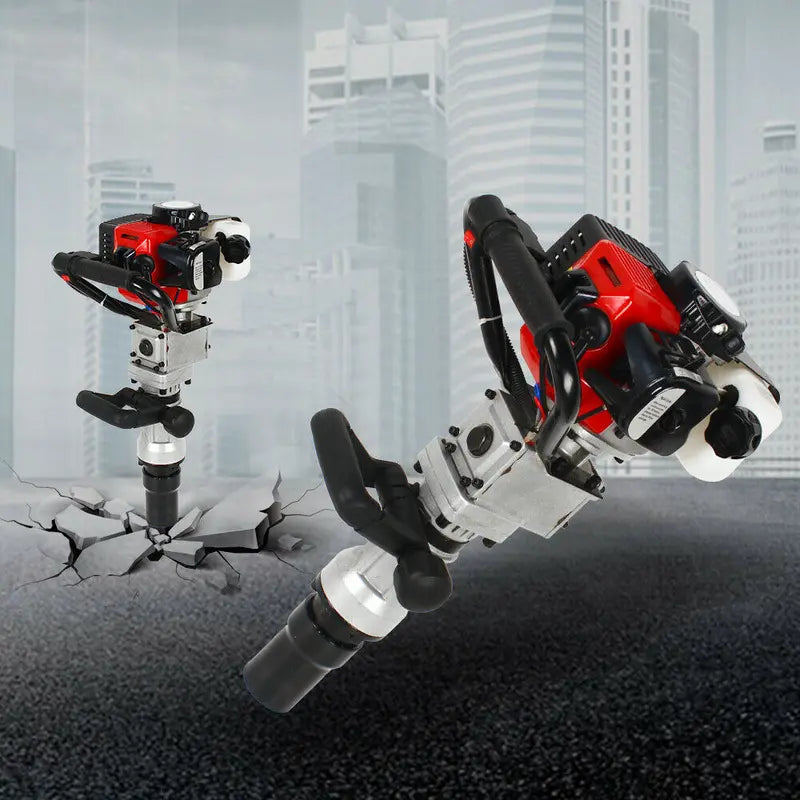

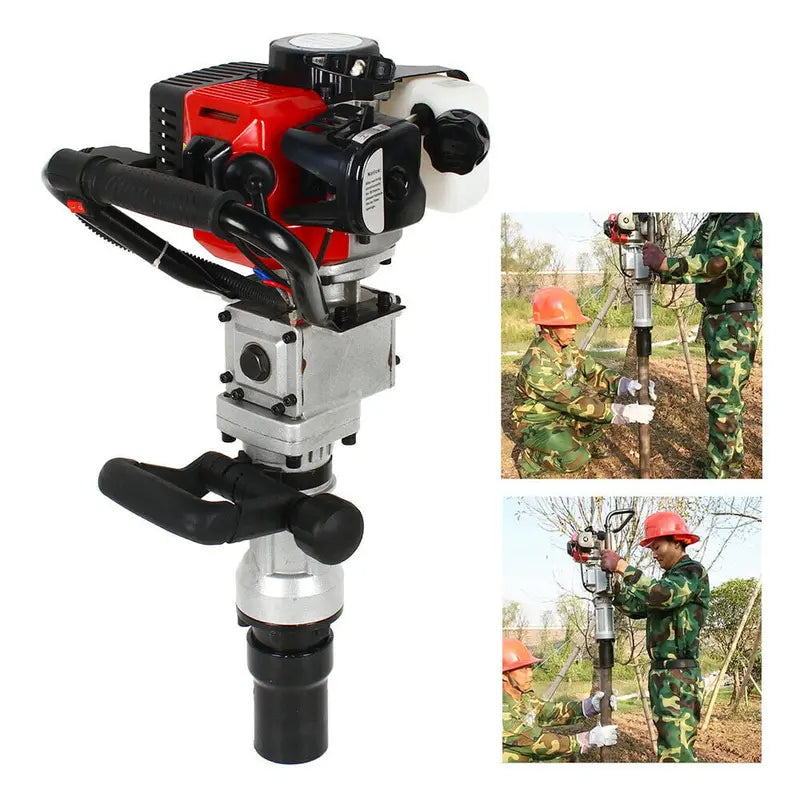

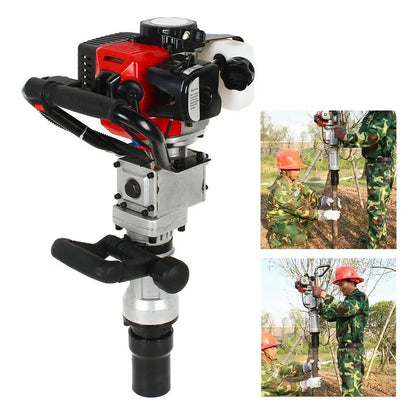

2 Stroke 32.6cc T Post Driver Gasoline Pile Driver Farm Fence Hammer Push Pile Kit Garden Piledriver Piling Machine

With this portable pile driver， piling will become more convenient!  This pile driver is equipped with a powerful 32.6cc two-stroke gasoline engine. Its max rotational speed reaches up to 8500r/min with a power of 0.9kw， so it operates very efficiently. It will be your good helper.

How to Operation：

1. First， add the oil mixture to the tank.

2. Install a sleeve of the right size for the pile to be driven.

3. Check that the flame-out switch is in the “-” position.

4. Close the damper when the machine is cold to start， and you can open the damper to start when the machine is hot. Wait for the machine to be normal and then open the damper to use.

5. Press the oil bubble to suck up the oil pipe until the air is eliminated.

6. Start the machine and pull the starter continuously.

7. Set the hand grip to the right position.

8. Add oil to the throttle before working until the engine is normal and you can work when you hear a crisp sound.

9. Start working. Hit the depth you want and stop.

10. Stop working by just turning off the flameout switch to the “0” position.

Specifications：

Model: Jh-55

Material: ABS， Iron， Aluminum and Alloy Steel

Color: Red/Blck

Power Source: Gasoline Powered

Starter System: Hand Pull Start

Engine Type: 36*32mm/1.41*1.25in， Single Cylinder， Air Cooling， 2-Stroke

One Function Tool Holder: Sleeve

Impact Frequency: 1200-2200r/Min

Impact Energy: 20-45J

Piling Head Size: φ55mm/2.16in， φ70mm/2.75in

Fuel: Oil Mixture (Gasoline:2-Stoke Engine Oil=25:1)

Fuel Capacity: 0.9L/0.23gal

Fuel Consumotion Rate: ≤0.5L/h(0.13gal/h)

Displacement: 32.6cc

Max. Power and Speed: 0.9kw/8500r/Min

Max. Torque and Speed: 1 .45N.m/5300r/Min

Product Size: 55*27*31cm/21.65*10.62*12.2in

Main Handle Size(L*W): 26*20cm/10.23*7.87in

Secondary Handle Size: 12*15cm/4.72*5.9in

Packing Size: 64.5*34*37cm/25.39*13.38*14.56in

Sleeve Length: 11cm/4.33in

Net Weight: 13kg/28.66lbs

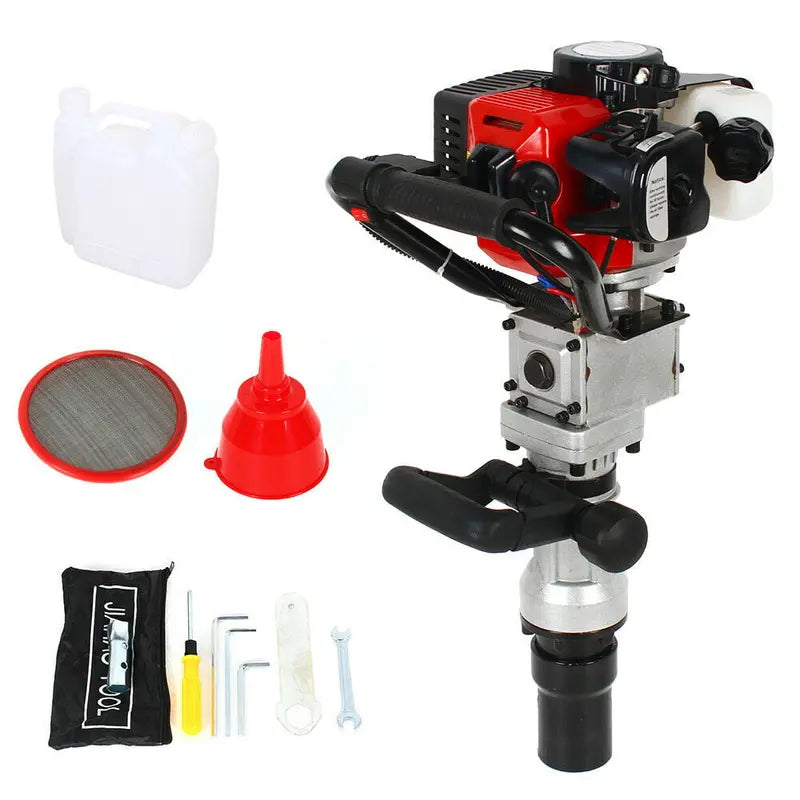

Package Included：

1* Gasoline Pile Driver

2* Sleeves

1* Proportioning Pot

1* Funnel

1* Tool Bag

1* Strainer

All Needed Accessories

• High Efficiency: The powerful 32.6cc two-stroke engine provides impact energy of up to 20-45J and impact frequency of up to 1200-2200r/min， realizing efficient handling of various piling work
• Good Heat Dissipation: Multiple cooling holes on the body provide good heat dissipation， maintaining stable performance over long periods of time
• Robust and Durable: The high-quality ABS， iron， aluminum and alloy steel materials are robust and wear-resistant， scratch-resistant， impact-resistant and rustproof， ensuring a long service life and good adaptability to the working environment
• User-friendly Design: The lightweight design(28.66lbs ) is easy to carry and control. At the same time， the cordless gasoline power is cordless better for outdoor use
• Complete Accessories: The proportioning pot， funnel， strainer and installation tool kit are included in the package for your convenience， so you don’t need to buy extra
• Convenient Operation: It adopts the hand-pull start， and its throttle and flameout switch on the handle is integrated to facilitate your operation
