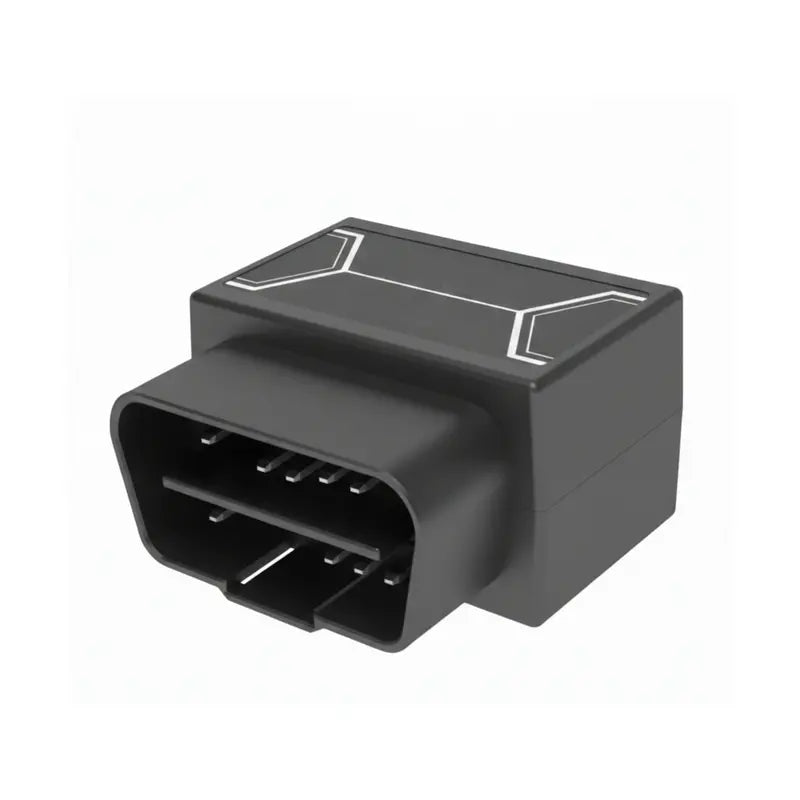

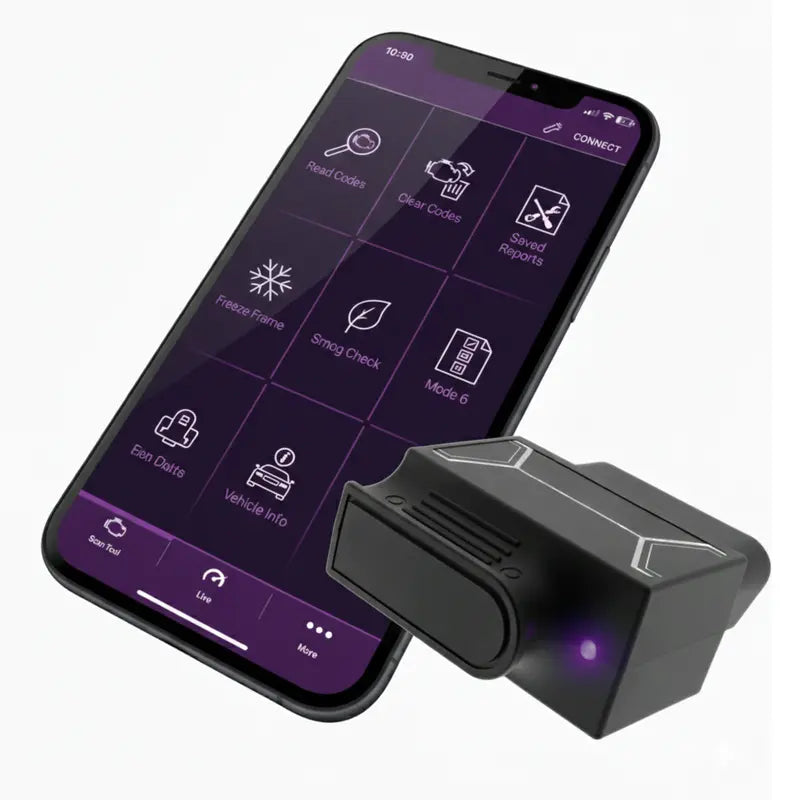

Bluetooth OBD2 Scanner iOS & Android Compatible, Works with 1996+ Vehicles

Socket-Side Diagnostics, Phone-Side Display

This scan tool uses a compact OBD2 interface module that remains connected at the vehicle diagnostic port while the phone or tablet displays data in the app. It interfaces with the standard J1962 16-pin OBD2 connector used on 1996+ gasoline vehicles. Power is drawn from the vehicle diagnostic connector on the 12V electrical system.

Codes, Monitors, and PID Data in One Workflow

After Bluetooth pairing, the app communicates through the OBD2 interface to request diagnostic information and data parameters. Functions include reading and clearing confirmed, pending, and permanent DTCs, viewing freeze-frame records associated with a stored code, and checking emissions readiness monitor status. Live data supports multiple PIDs shown as graphs, gauges, or numeric readouts, with optional logging for later review. Mode 6 test data is available when supported by the vehicle.

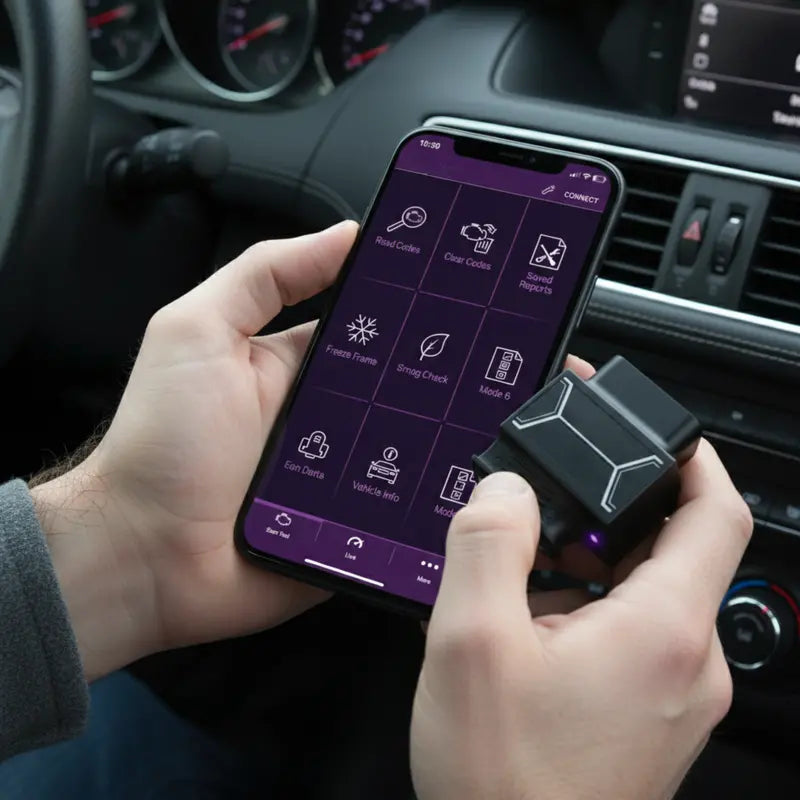

Plug In, Pair, Store

Insert the module into the vehicle OBD2 port, typically located under the dash near the driver footwell. Pair to an iOS or Android phone or tablet via Bluetooth, then select the vehicle profile in the app to start a diagnostic session. The module size supports storage in common cabin compartments such as a glove box, center console, or door pocket.

Product Benefits:

• Standard OBD2 Fit: Connects to the J1962 16-pin OBD2 port used on 1996+ gasoline vehicles.

• Phone or Tablet Viewing: Diagnostic data is shown in an iOS or Android app while the module stays plugged in.

• Code and Freeze-Frame Access: Reads and clears confirmed, pending, and permanent DTCs and displays related freeze-frame records when available.

• Readiness and Mode 6 Data: Shows emissions readiness monitor status and Mode 6 test data when supported by the vehicle.

• Compact Storage Size: 2.2 × 1.9 × 1.0 inches housing fits in common cabin storage areas such as a glove box, center console, or door pocket.

Specification:

• Housing Material: Polymer enclosure with integrated connector
• Dimensions: 2.2 × 1.9 × 1.0 inches
• Product Type: Bluetooth OBD2 diagnostic scan tool
• Vehicle Compatibility: 1996+ gasoline vehicles with standard OBD2 (J1962) port
• Connection to Vehicle: 16-pin OBD2 (J1962) plug
• Power Source: Powered by vehicle through OBD2 port (12V system)
• Wireless Connection: Bluetooth to phone or tablet
• Supported Devices: iOS and Android (app required)
• Core Functions: Read and clear diagnostic trouble codes (DTCs)
• Data Access: Live vehicle data (PIDs) and freeze-frame records when available
• Emissions Info: Readiness monitor status and Mode 6 data (vehicle-dependent)
