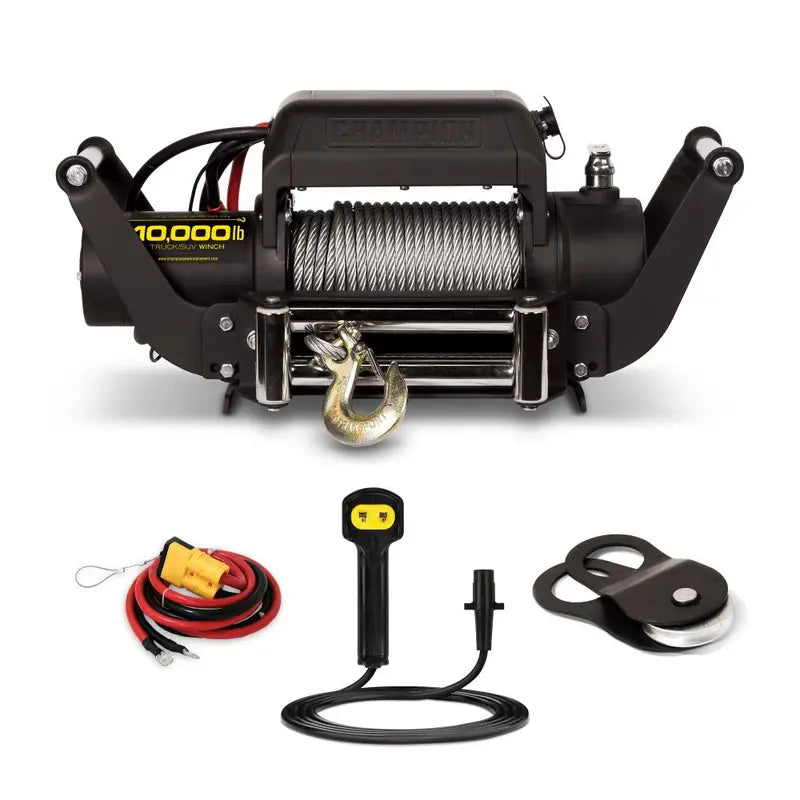

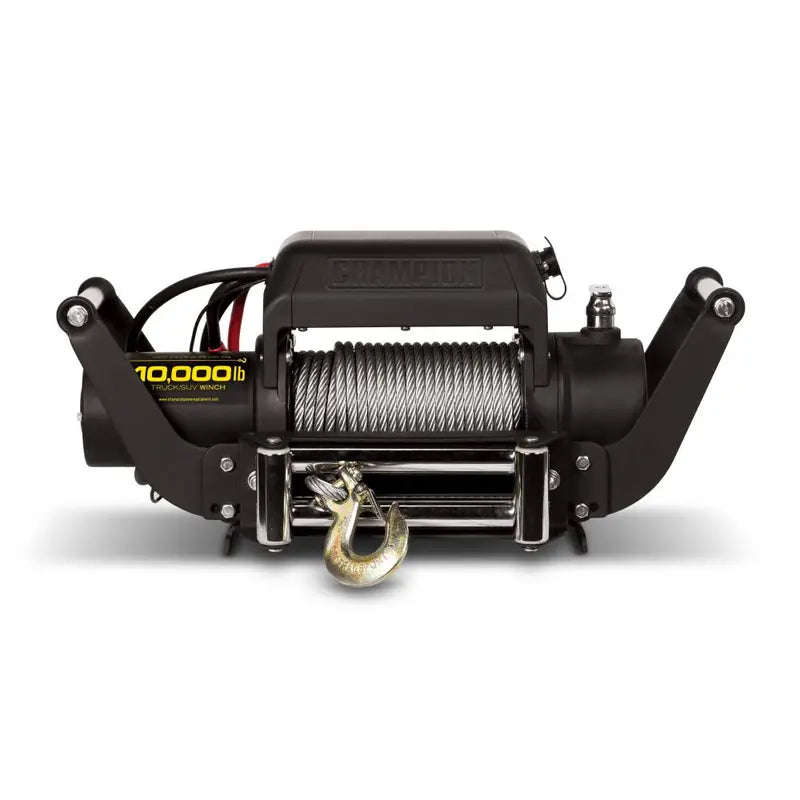

Champion 10,000-Lb Truck/SUV Winch Kit with Speed Mount and Remote Control

Description

Champion 10，000-Lb Truck/SUV Winch Kit with Speed Mount and Remote Control

The Champion Power Equipment 11006 10，000 lb. Truck/SUV winch kit with a 3.6 HP (12 Volt) DC series wound motor is designed for powerful and reliable winching with your truck or SUV. With a gear reduction ratio of 216:1， this winch boasts a line speed of 3.9 Ft. per minute with a full load， and 15.7 Ft. per minute with no load. The 85 Ft. x 3/8 In. galvanized， super-duty aircraft cable is less prone to fraying， even when used in highly abrasive terrain， such as in rocks， mud， or sand. This incredibly strong cable is guided onto the 2.5 x 8.8 In. drum through the reliable roller fair lead to maximize the life of the cable. The efficient three-stage planetary gear system， dynamic braking system and Free spooling clutch along with the hand-held quick-connect remote control and 12 Ft. cable offer excellent control while winching. The included snatch block can be used to increase winching power or to aid in angled pulls. With a rated line pull of 10，000 Lbs.， this winch installs quickly with our speed mount 2 In. hitch adapter， which features convenient 3-position adjustable handles that also serve as side guards to protect your winch. The speed mount hitch adapter is designed for quick and easy mounting， transportation and storage. To ensure you’ll have everything you need to start winching， in addition to the speed mount hitch adapter， you’ll also receive a roller fair lead， a hand-held quick-connect remote control， a snatch block and 6 Ft. battery lead cables. Champion support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and Free lifetime technical support.

California Proposition 65 Warning.

View Warning Label

Features

Powerful – 10，000-lb rated line pull powered by a 3.6-horsepower (12-volt) DC series wound motor

Efficient – line speed of 3.9 Ft. per minute with a full load， and 15.7 Ft. per minute with no load

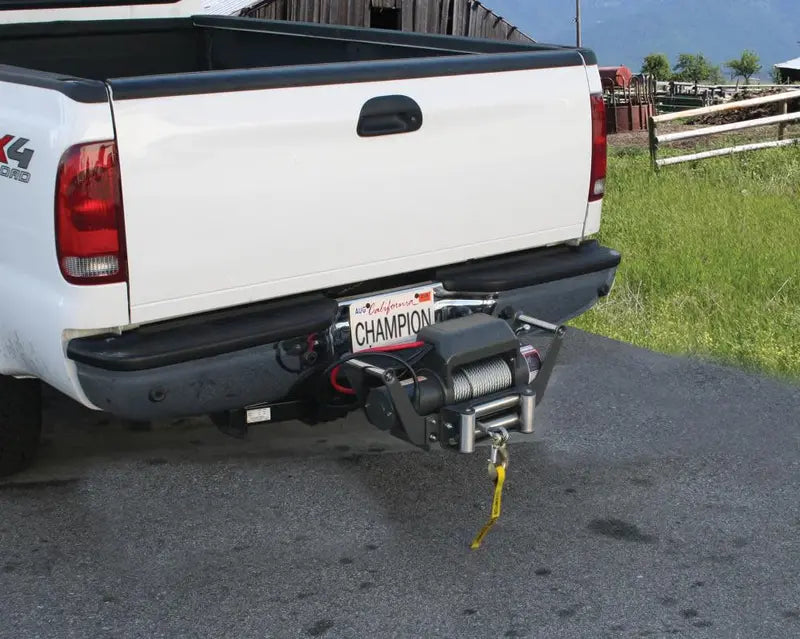

Convenient – speed mount 2 In. hitch adapter， included hand-held quick-connect remote control， 6 Ft. battery lead cables and roller fair lead create an easier than ever winching experience

Hassle-free – the roller fair lead creates a safe and smooth pull with the 85 Ft. super-duty aircraft cable， plus the included snatch block can aid in angled pulls and increase winching power

Reliable – Champion support includes 2-year limited warranty with Free lifetime technical support from dedicated experts

Specifications

Acme Tools Brand NameCHAMPION POWER EQUIPMENTAcme Tools Part Number11006C1Assembled Weight (lbs)116.8California Proposition 65 Warning RequiredYesColorBlackCountry of OriginChinaDrum Diameter (in)2.5Drum Length (in)8.8Internal Supplier Part #11006Internet Product Code (IPC)49366F7B058Manufacturer Warranty2 Year limitedMotor Horsepower (hp)3.6Motor Voltage (V)12Overall Height (in)5.6Overall Length (in)21.9Overall Weight (lbs)116.8Overall Width (in)10.5Package Weight125.7Package Weight (lbs)125.7Wire Diameter (in)3/8Wire Length (in)1020
