Hobart Handler 115V MIG Welder 140-Amp Industrial-Grade 500559 Unit

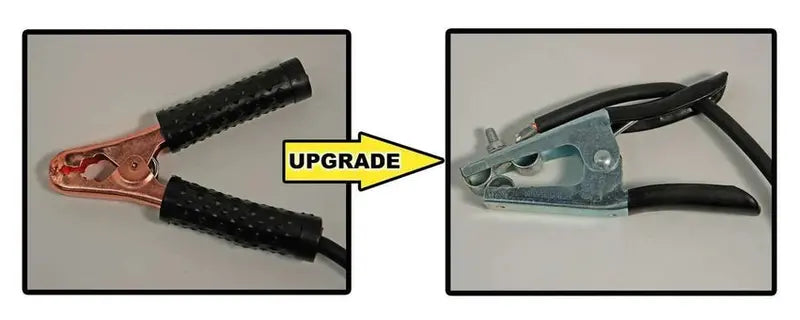

Built with Hobart quality & durability. the Handler 140 is Hobart’s most popular wire feed welder and the industry’s best value – it is MIG ready. no additional kit required. Operating on standard 115V household current. the Handler 140 is extremely versatile and perfect for the welder that wants to work on auto body. household repairs. or even heavier farm projects that require extra welding power. A 5-position tapped voltage control selector gives you the ability to fine tune your arc offering a smooth stable arc on all thicknesses. Built with an industrial cast aluminum drive system and a heavy duty work clamp the Hander 140 delivers a wire welding package with industrial performance.

Refurbished units are clean condition and most look brand new. but some may have some minor dings. Most are unused returns that have never been fired up except during testing. If there has been prior use. it is very minimal. Our welders are manufacturer refurbished by Hobart. All units are fully tested for performance and guaranteed to work like new. They come with a one year manufacturer’s warranty.

• Smooth and stable arc on all thicknesses provides you with an excellent arc performance

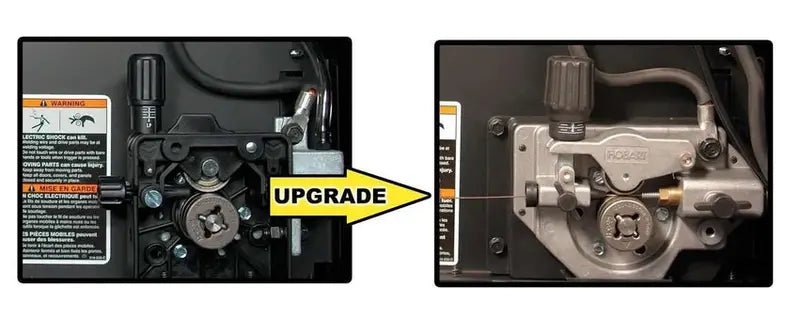

• Industrial cast aluminum wire drive system provides professional and durable wire feed performance

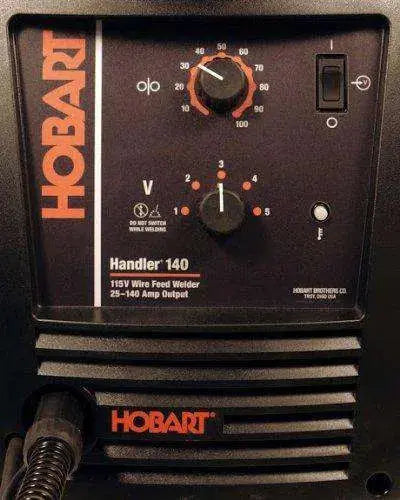

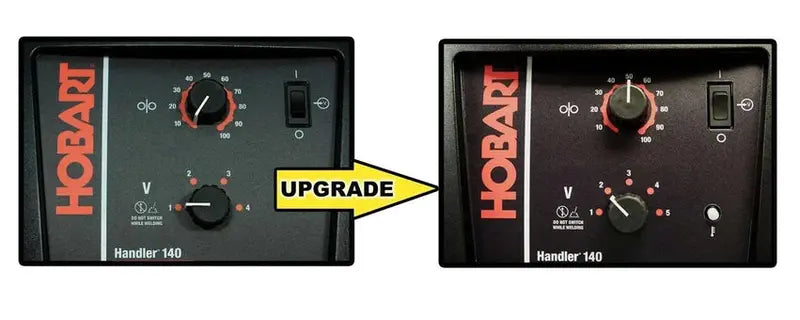

• Five-position voltage control and five voltage ranges allow you to fine-tune the arc
• Quick Select drive roll makes set-up quicker by offering three grooves. two for different size solid wire and a third for flux-cored wire
• Lightweight 57 lb. design makes the MIG welder easier to transport for increased ability to weld where you need to weld
• Convenient polarity changeover makes it quick and easy to change polarity between solid or tubular wire
• Sloped control panel provides increased visibility to the user interface and makes adjustments easier

• Shielding gas and safety equipment are not included with the Handler MIG welder

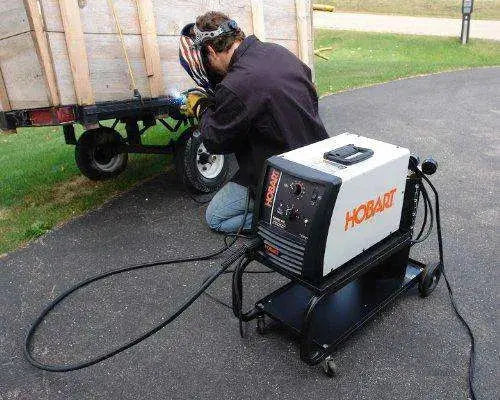

• The Hobart MIG welder is ideal for auto repair. home. or farm projects
• Self- resetting thermal overload protection guards the power transformer from thermal overload to ensure maximum reliability
• Self-resetting motor protection keeps the wire feed system from overload so you won’t need to change or reset the circuit breaker
• Flux-cored and MIG ready for versatile use
• Material Thickness: 24 ga. – 1/4 in.
• Input Voltage: 110/115/120V

• Amperage Input at Rated Output (60 Hz): 115V 90 A @ 18.5 VDC
• Amperage Input at Rated Output (60 Hz): KVA 115 V: 25-140 Amps
• Amperage Input at Rated Output (60 Hz): KW 20 V. 2.9 KVA. 2.5 KW
• Amperage Range: 25 -140 Amps
• Application/Use: Maintenance/repair. Auto body. Farm/ranch. Home repair. DIY. Metal art
• Clamp Cable Length: 10 ft.
• Compatible Metal: Stainless Steel / Steel / Aluminum
• Country of Origin: Made in USA
• Current Range: DC
• Ground Cord Length: 10 ft.
• Gun Length: 10 ft.
• Input Voltage: 110/115/120 V
• Maximum Material Thickness: Mild Steel 24.00 ga – 1/4 in.
• Maximum Open Circuit Voltage: 28 VDC
• Maximum Wire Diameter: .045 in.
• Output Amperage Range: 90 A at 18.5 VDC. 20% duty cycle
• Product Length: 19.5 in.
• Product Height: 12.375 in.
• Product Width: 10.625 in.
• Product Weight: 57 lb.
• Rated Output at 20% Duty Cycle: 90 Amps
• Solid Wire and/or Flux Cored: Solid Wire and Flux Cored
• Spool Size Capacity: 4 or 8 in. spools
• Wire Feed Speed Range: 40 IPM – 700 IPM

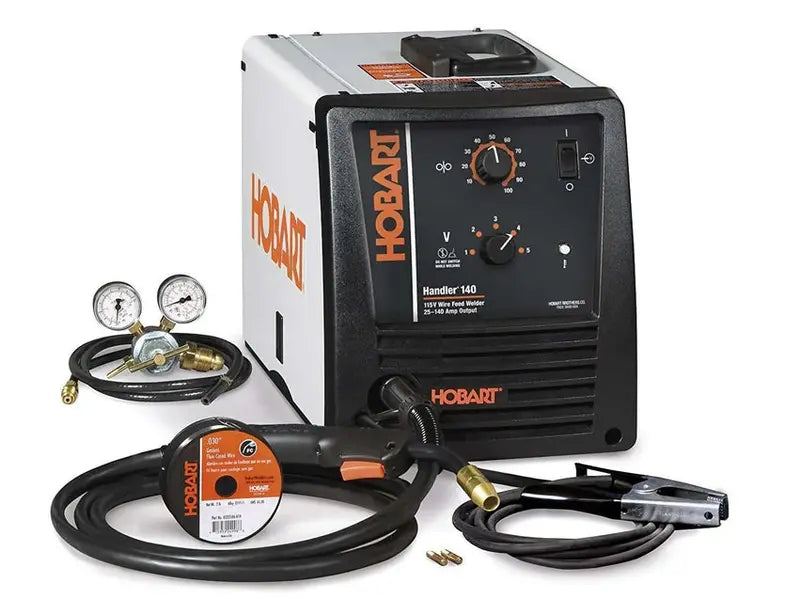

Package Contents:

• Handler 140 with built-in gas valve
• 10 ft. MIG gun with liner
• Dual gauge regulator & gas hose
• 10-ft work cable & clamp
• 10-ft power cord
• Extra .030 contact tips
• Sample spool of .030 flux-cored wire
• 8 inch spool adapter
• Owners manual
• Set-up guide
