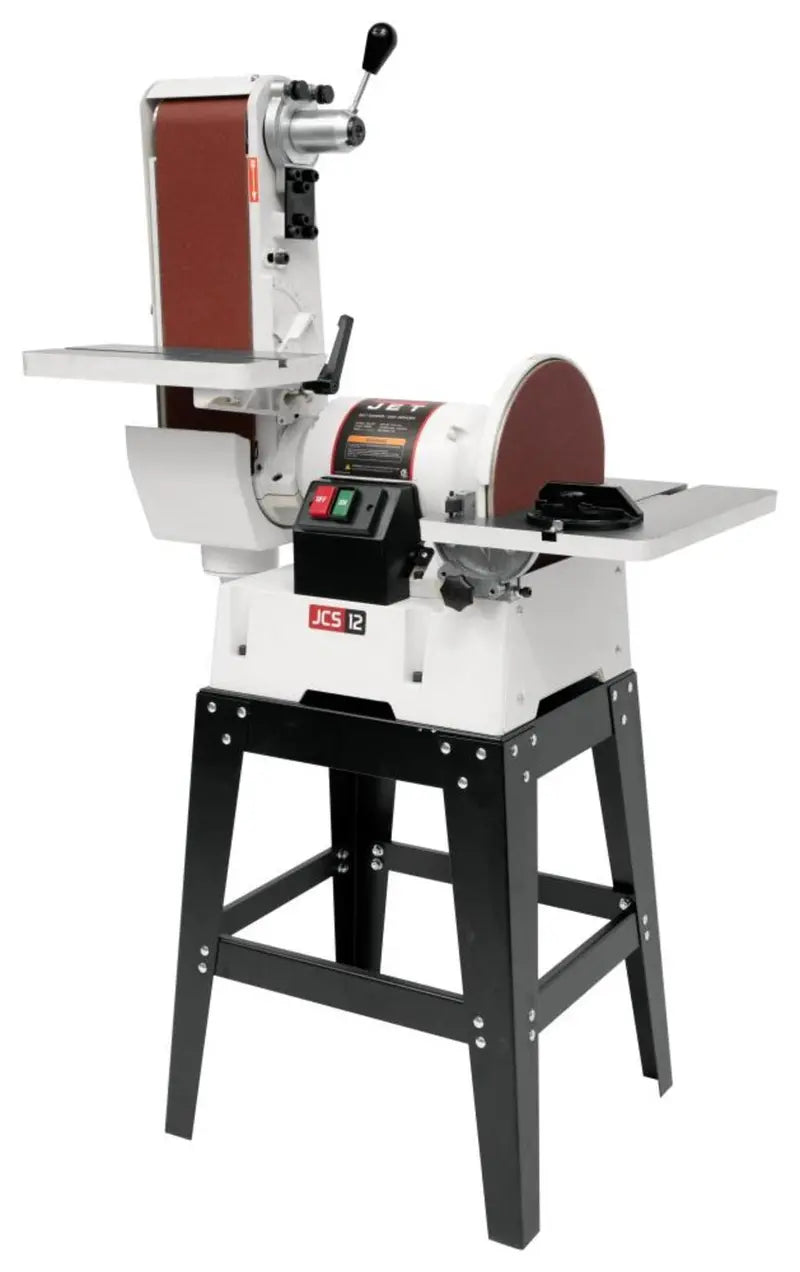

JSG-6DCK 6 In. x 48 In. Belt / 12 In. Disc Sander with Open Stand

Description

JSG-6DCK 6 In. x 48 In. Belt / 12 In. Disc Sander with Open Stand

Get dual-function sanding at the same workstation with the JSG-6DCK， 6-Inch x 48-Inch Belt / 12-Inch Disc Sander with Open Stand. The 6 x 48-inch belt-driven sander lets you smooth stock down to a precise thickness and then move to a 12-inch disc sander to shape and smooth smaller surfaces and curves. The 1 1/2 hp motor on the Jet JSG-6DC sander powers both the belt and disc. The top-facing belt sander is adjustable from level to both 45 and 90 degrees， providing 3-way sanding functionality. It locks with dual thumbscrews to keep the sanding belt on track. The Jet belt and disc sander comes with two machine-engineered cast-iron work surfaces， each with tilt functionality for mitering operations. An extra-strength steel stand provides operating stability， and the work tables have handles so you can easily carry the workstation to different job areas. The Jet sander has a 4-inch outlet so it can be hooked up to an accessory dust collection unit.

California Proposition 65 Warning.

View Warning Label

Features

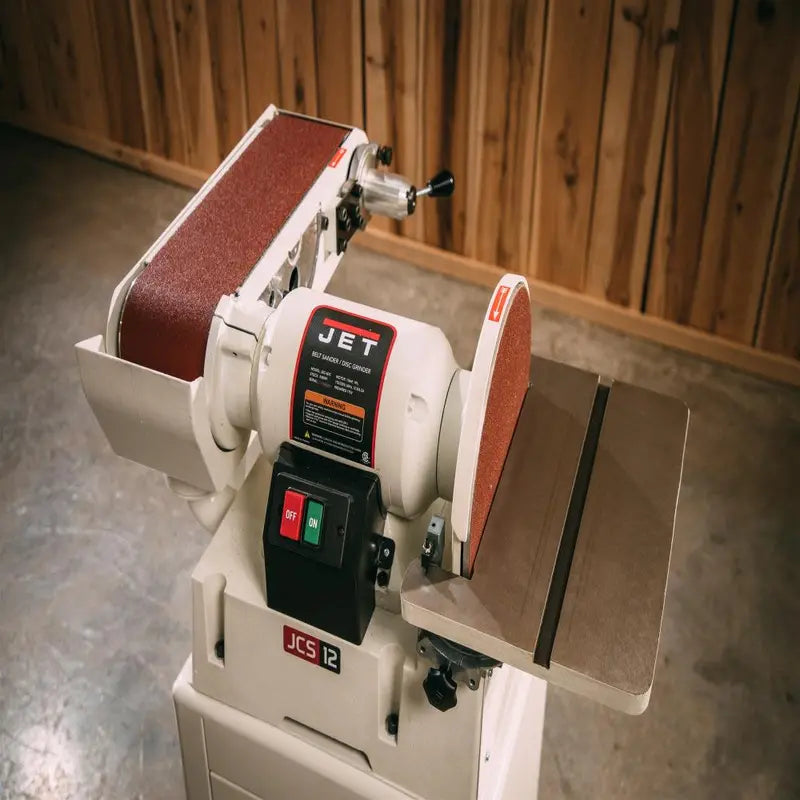

Jet JSG-6DC sander combines a belt sander with a disk sander at the same workstation

A 1 1/2 hp motor powers both sanders

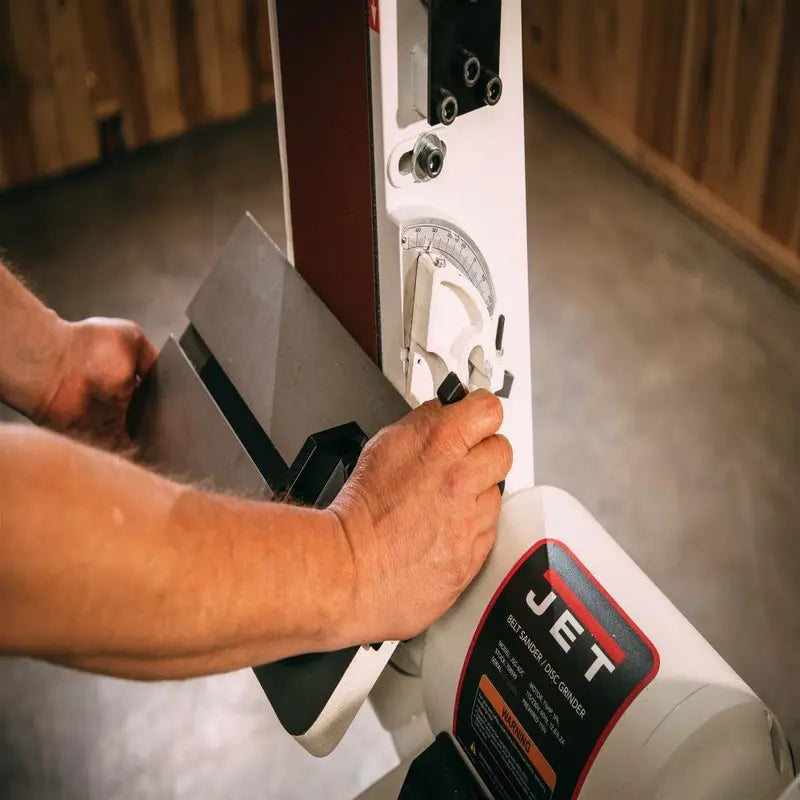

Belt sander provides 3 sanding positions at level， 45 degrees and 90 degrees

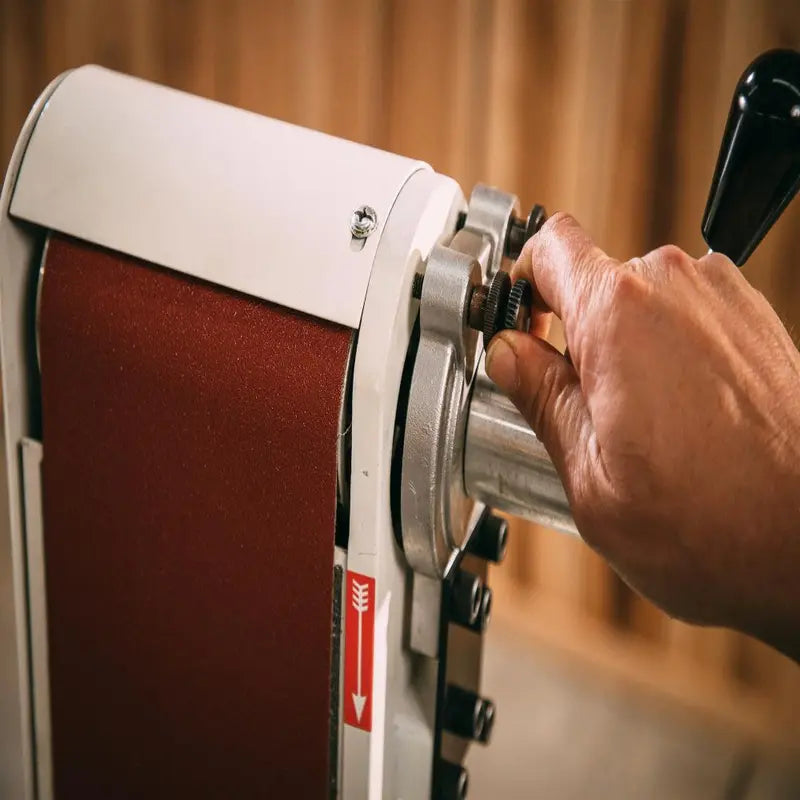

Dual thumbscrews maintain precise belt tracking

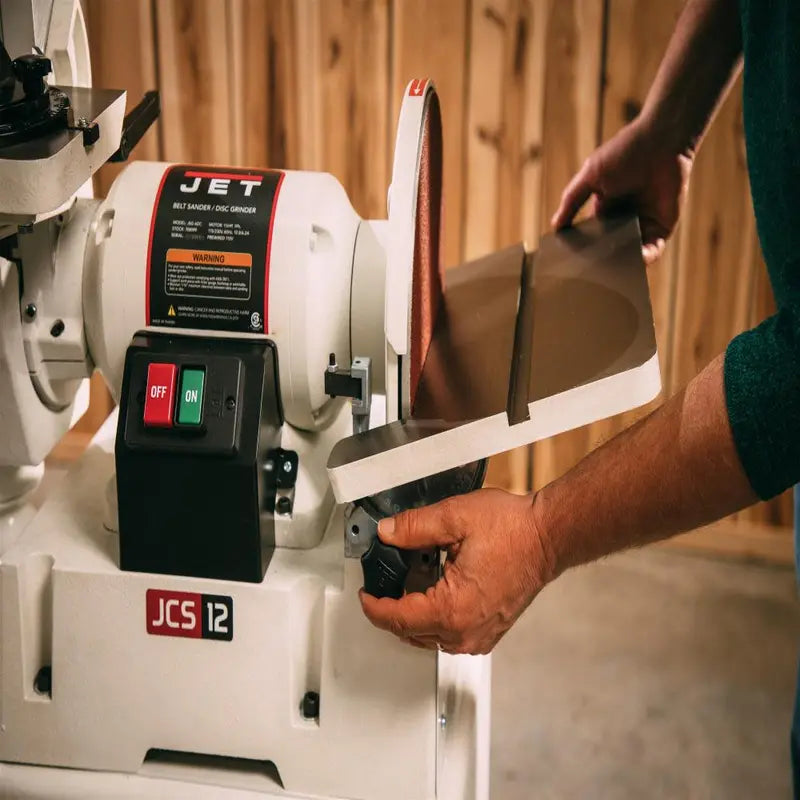

Jet belt and disc sander has two precision-engineered cast-iron work surfaces

Steel stand and equipment handles maintain working stability and provide work-site portability

4-inch outlet can be hooked up to a standalone dust collection unit

Jet sander comes with a 5-year limited warranty

Specifications

Acme Tools Brand NameJETAcme Tools Part Number708599KAmperage (A)12Assembled Weight (lbs)243Assembly RequiredYesBelt Sander Tilt (Deg)0Belt Sanding Speed-Maximum (Ft/Min)2500Belt Sanding Speed-Minimum (Ft/Min)2500Belt Size6×48Belt Table Length (in)12.5Belt Table TiltYesBelt Table Width (in)7Belt Tension TypeLeverBelt Tracking TypeYesBench or StationaryStationaryCalifornia Proposition 65 Warning RequiredYesColor / FinishWhite/SteelConvertible To 220 VYesCord Length (ft)8Cordless / CordedCordedCountry of OriginTaiwanCSA CertifiedNoDisc Table Length (In)16.5Disc Table Tilt Range (Deg)25 ° up， 45 ° downDisc Table Width (In)10Dust CollectionYesDust Collection MethodDust PortElectrical Cord Configuration3 WireETL ListedNoglobalTradeItemNumber (GTIN)00662755147609Horsepower (hp)1.5Housing MaterialAluminumInternal Supplier Part #708599kInternet Product Code (IPC)8DBD847ED15Lock-on SwitchYesLockout Power SwitchYesManufacturer Warranty2 YearMaterialCast IronMaximum Disc Speed (rpm)1725Miter GaugeYesNet Tool Weight (lbs)0Package Depth28.9Package Height20Package Weight243Package Weight (lbs)243Quick Release Belt TensionNoSander StyleBelt & DiscSanding Disc Diameter (in)12Stand IncludedNoTable MaterialCast IronUL ListedNoUPC662755147609Variable SpeedNoVoltage110/220 Volts
