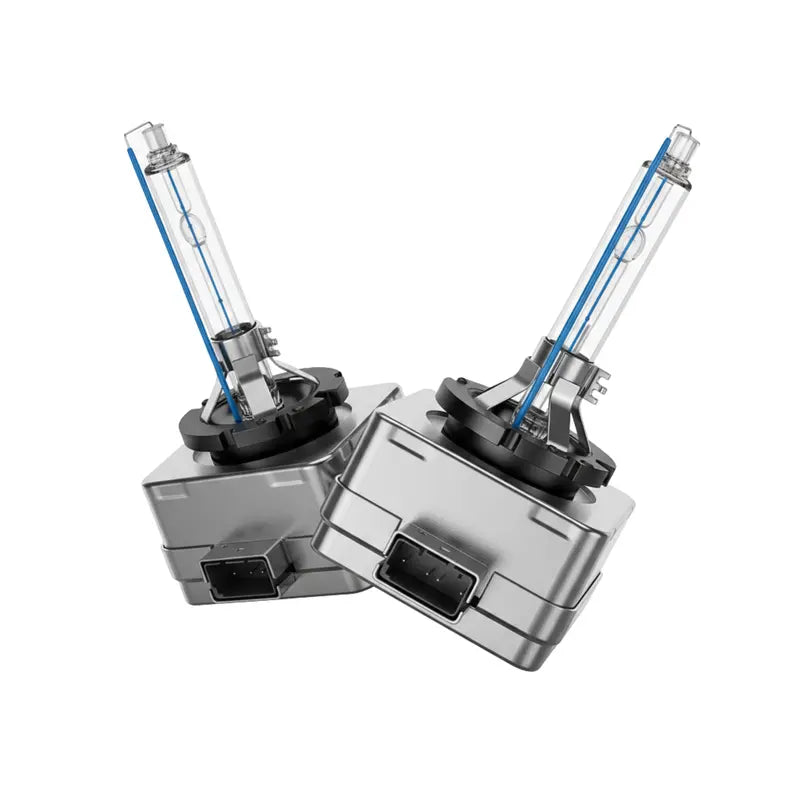

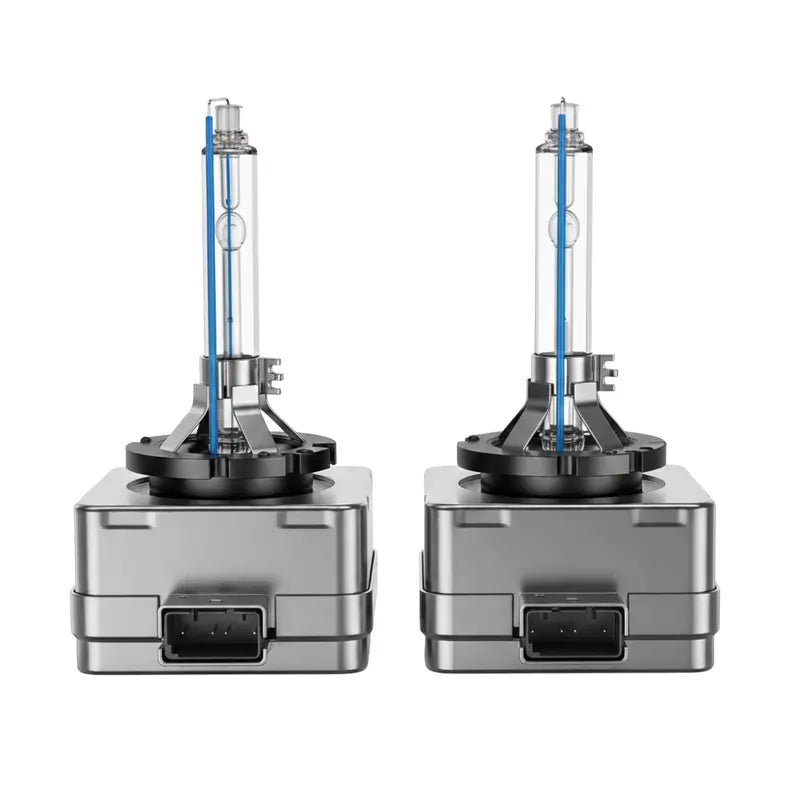

OEM-Compatible HID Xenon Bulbs D1S/D2S/D3S, 6000K or 6500K, 2-Pack

Base-Coded by Design

These HID xenon bulbs are manufactured in three distinct variants: D1S, D2S, and D3S. Each variant uses a keyed metal base that matches a specific OEM HID socket, preventing cross-installation between bulb types. Rated at 35W, the capsules are intended for factory HID headlamp assemblies that use a xenon arc light source rather than halogen filaments.

Vehicle Circuit Operation

The bulbs operate through the vehicle’s 12V lighting circuit using the existing HID ballast configured for the selected D-series type. Light output increases gradually after switch-on as the xenon arc stabilizes, which is standard behavior for HID systems. D1S and D3S variants incorporate an igniter within the base, while D2S relies on an external igniter integrated into the vehicle ballast.

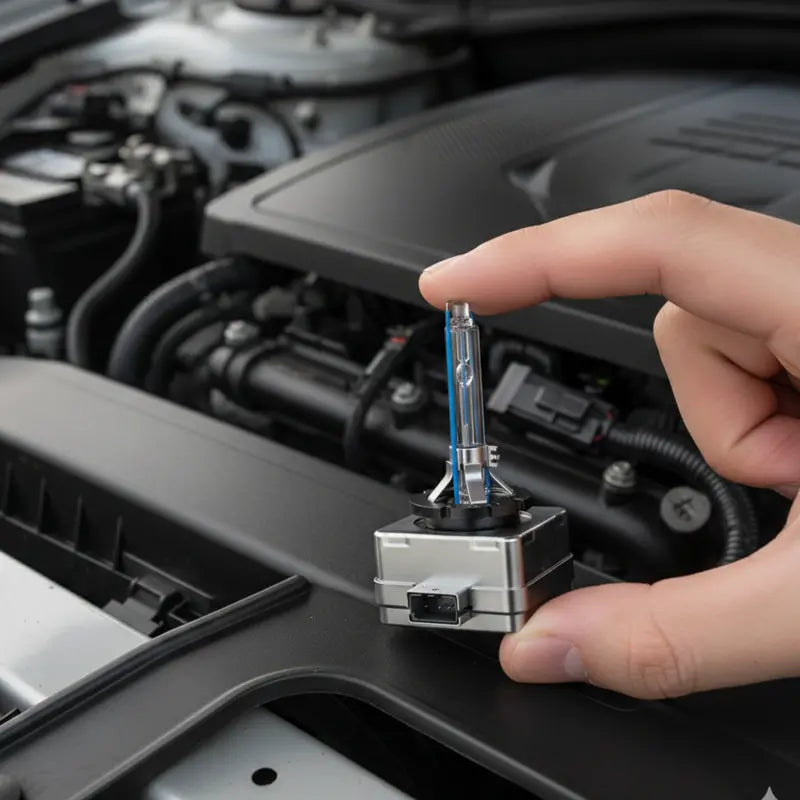

Installation and Handling

Installation follows typical OEM HID service procedures using the factory bulb retainer and socket. The keyed base aligns with the housing to ensure correct orientation before locking in place. The glass capsule should remain free of oils during handling, and unused bulbs should be stored in the provided tray packaging when not installed.

Product Benefits:

• Base-Specific Fitment: Available in D1S, D2S, and D3S configurations to match factory HID socket types.
• OEM Circuit Use: Connects to the vehicle’s original 12V HID lighting circuit and ballast system.
• Keyed Base Interface: Base design aligns with the headlamp socket to ensure correct orientation during installation.
• Factory Housing Size: Dimensions correspond to OEM HID bulb envelopes for standard headlamp housing clearance.
• Service Handling Format: Tray packaging supports organized storage and controlled handling during replacement.

Specification:

• Material: Metal base with glass xenon capsule

• Bulb Dimensions: D1S approx. 3.1 × 1.3 × 1.1 in; D2S approx. 2.8 × 1.1 × 1.0 in; D3S approx. 3.0 × 1.3 × 1.1 in
• Power Source or Voltage: Vehicle 12V HID lighting circuit via OEM ballast

• Rated Power: 35W

• Color Temperature: 6000K D1S, 6500K D2S and D3S

• Luminous Output: ~3000 to 3500 lumens per bulb

• Connection Type: OEM keyed HID socket (all variants)

• Placement or Use Area: Exterior headlamp housing
